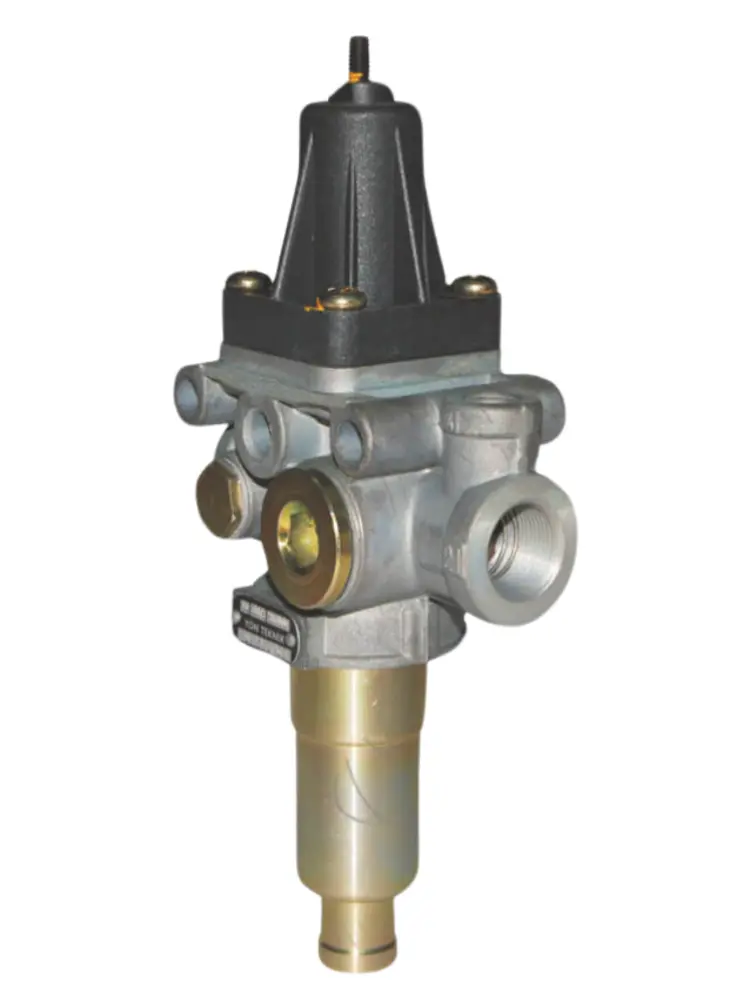

Case Tractor Unlooader Valve 84440618
Roll over image to zoom in
€50,00
In trucks, buses, and tractors equipped with air brake systems, the mechanism that prevents the air compressor from continuously generating pressure and protects the system from excessive pressure is called the Unloader Valve. When the system reaches the target pressure (usually between 8-12 bar), this valve activates and discharges the air produced by the compressor.
-
Brand: WABCO, Faborex
-
Calculated Volume (dm³):1.1484
-
Cut-out pressure:8.5 bar
-
Max. operating pressure:25.0 bar
-
Mounting:2x Ø 8.8 mm
-
Opening pressure:12.0 bar
-
Operational range:0.7+0.5 bar
-
Port thread 1:M22 x 1.5
-
Port thread 21:M22 x 1.5
-
Port thread 22:M12 x 1.5
-
Port thread 23:M12 x 1.5
-
Port thread 3:Union Ø 20 mm
-
Temperature range:-40°C to +80°C
-
Type:With one way valve
-
Version: Without tire inflating valve
-
Size (mm x mm x mm):110 x 174 x 60
-
Weight (kg):0.642
