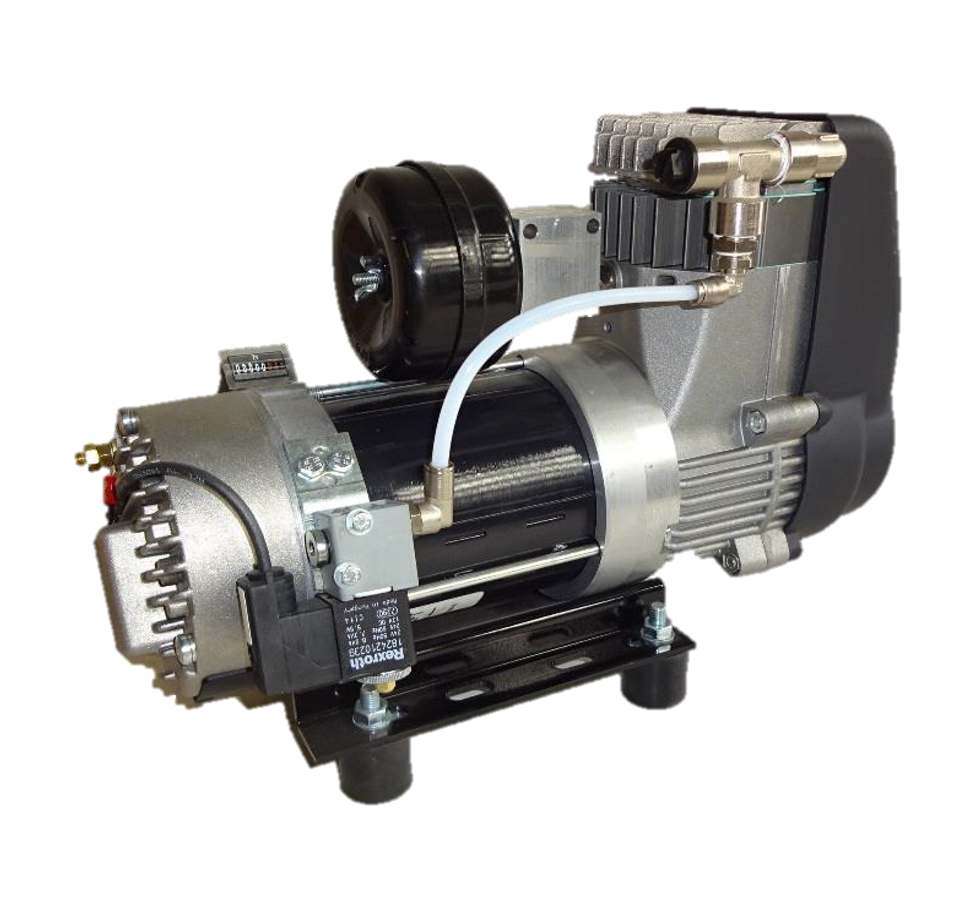

AA05039000 Brushless Electric Oil-Free Air Compressor 12V
| OILLES AIR COMPRESSOR BRUSHLESS MOTOR BLPM | |
| Voltage | 12 VDC |
| Power consumption | 500 W |
| Nominal speed | 2500 RPM |
| Maximum current consumption | 43 A |
| Thermal protection | NF 113°C |
| Protection level | IP 54 |
| Volumetric displacement | 52 cm3 |
| Flow rate at 1 bar | 100 l/min |
| Flowrate at maximum pressure | 48 l/min |
| Maximum pressure | 10 bar (145 PSI) |
| Ventilated | Evet / Yes |
| Noise level | 85 dB (A) |
| Running temperature | -25 / 55 °C |
| Minimum storage temperature | – 40 °C / – 40° F |
| Connection | 3/8’’ BSP |
| Weight | 11,3 kg |
[vc_row equal_height=”yes” content_placement=”top”][vc_column width=”1/3″ css=”.vc_custom_1635941672263{margin-bottom: 35px !important;padding-right: 30px !important;padding-bottom: 30px !important;padding-left: 30px !important;}” offset=”vc_col-lg-4 vc_col-md-4 vc_col-xs-12″ woodmart_css_id=”61827d190fb95″ parallax_scroll=”no” woodmart_sticky_column=”false” wd_collapsible_content_switcher=”no” mobile_bg_img_hidden=”no” tablet_bg_img_hidden=”no” woodmart_parallax=”0″ woodmart_box_shadow=”no” mobile_reset_margin=”no” tablet_reset_margin=”no” wd_z_index=”no” responsive_spacing=”eyJwYXJhbV90eXBlIjoid29vZG1hcnRfcmVzcG9uc2l2ZV9zcGFjaW5nIiwic2VsZWN0b3JfaWQiOiI2MTgyN2QxOTBmYjk1Iiwic2hvcnRjb2RlIjoidmNfY29sdW1uIiwiZGF0YSI6eyJ0YWJsZXQiOnt9LCJtb2JpbGUiOnt9fX0=”][woodmart_title align=”left” style=”underlined” font_weight=”700″ title=”Technical Specifications” woodmart_css_id=”69594b56d553a” responsive_spacing=”eyJwYXJhbV90eXBlIjoid29vZG1hcnRfcmVzcG9uc2l2ZV9zcGFjaW5nIiwic2VsZWN0b3JfaWQiOiI2OTU5NGI1NmQ1NTNhIiwic2hvcnRjb2RlIjoid29vZG1hcnRfdGl0bGUiLCJkYXRhIjp7InRhYmxldCI6e30sIm1vYmlsZSI6e319fQ==” wd_hide_on_desktop=”no” wd_hide_on_tablet=”no” wd_hide_on_mobile=”no”][woodmart_text_block woodmart_css_id=”69594aebc6e2f” woodmart_inline=”no” responsive_spacing=”eyJwYXJhbV90eXBlIjoid29vZG1hcnRfcmVzcG9uc2l2ZV9zcGFjaW5nIiwic2VsZWN0b3JfaWQiOiI2OTU5NGFlYmM2ZTJmIiwic2hvcnRjb2RlIjoid29vZG1hcnRfdGV4dF9ibG9jayIsImRhdGEiOnsidGFibGV0Ijp7fSwibW9iaWxlIjp7fX19″ parallax_scroll=”no” wd_hide_on_desktop=”no” wd_hide_on_tablet=”no” wd_hide_on_mobile=”no”]
| BRUSHLESS MOTOR BLPM | |||
| Voltage | 12 VDC | 24 VDC | 80 VDC |
| Power consumption | 500 W | 550 W | 650 W |
| Nominal speed | 2300 RPM | 2700 RPM | 2800 RPM |
| Maximum current consumption | 43 A | 24 A | 8 A |
| Ventilated | Hayır / No | ||
| Thermal protection | Sonde NF 113°C | ||
| Protection level | IP 54 | ||
| Volumetric displacement | 52 cm3 | ||
| Flow rate at 1 bar | 100 l/min | 108 l/min | 116 l/min |
| Flow rate at maximum pressure | 48 l/min | 55 l/min | 62 l/min |
| Maximum pressure | 10 bar (145 PSI) | ||
| Ventilated | Evet / Yes | ||
| ASSEMBLY | |||
| Installation position | Indifférente (de préférence horizontale) / Indifferent (preferably horizontal) | ||
| Noise level | 85 dB (A) | ||
| Running temperature | -25°C à/bis + 55°C / -13 °F to +131°F | ||
| Minimum storage temperature | – 40 °C / – 40 °F | ||
| Connection | 3/8’’ BSP | ||
| Weight | 11,3 kg | ||
