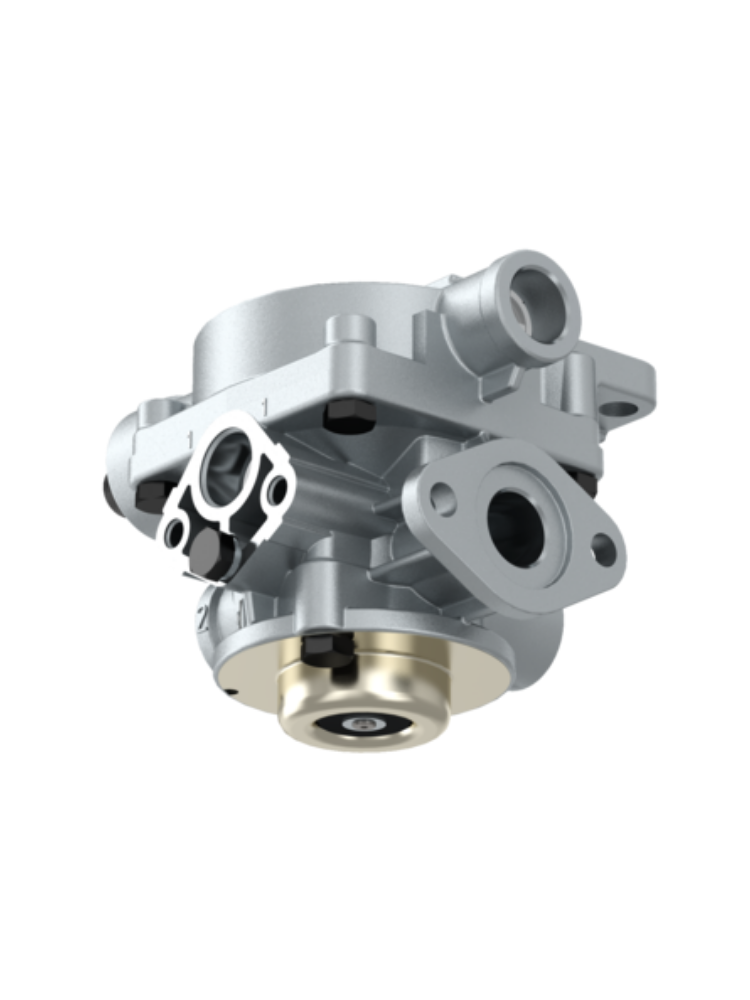

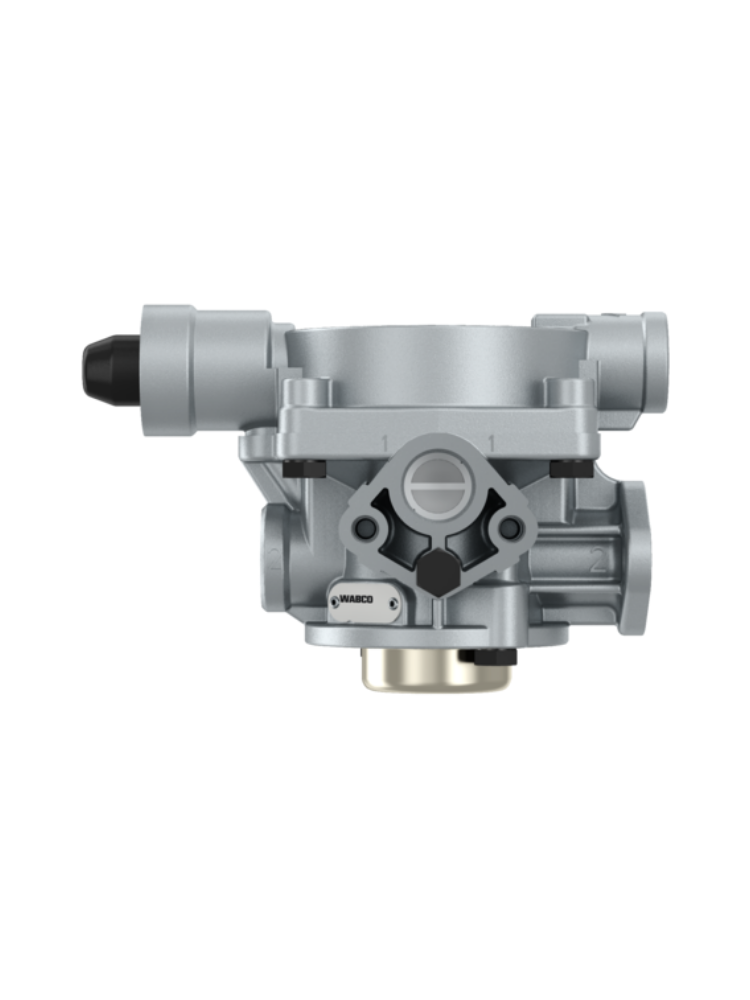

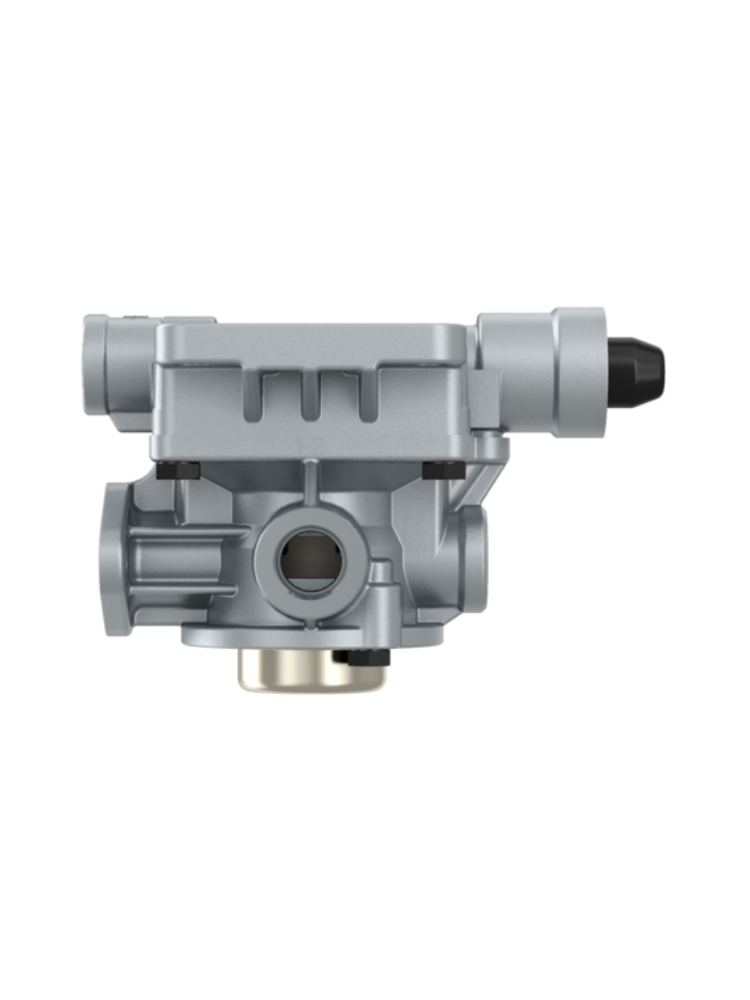

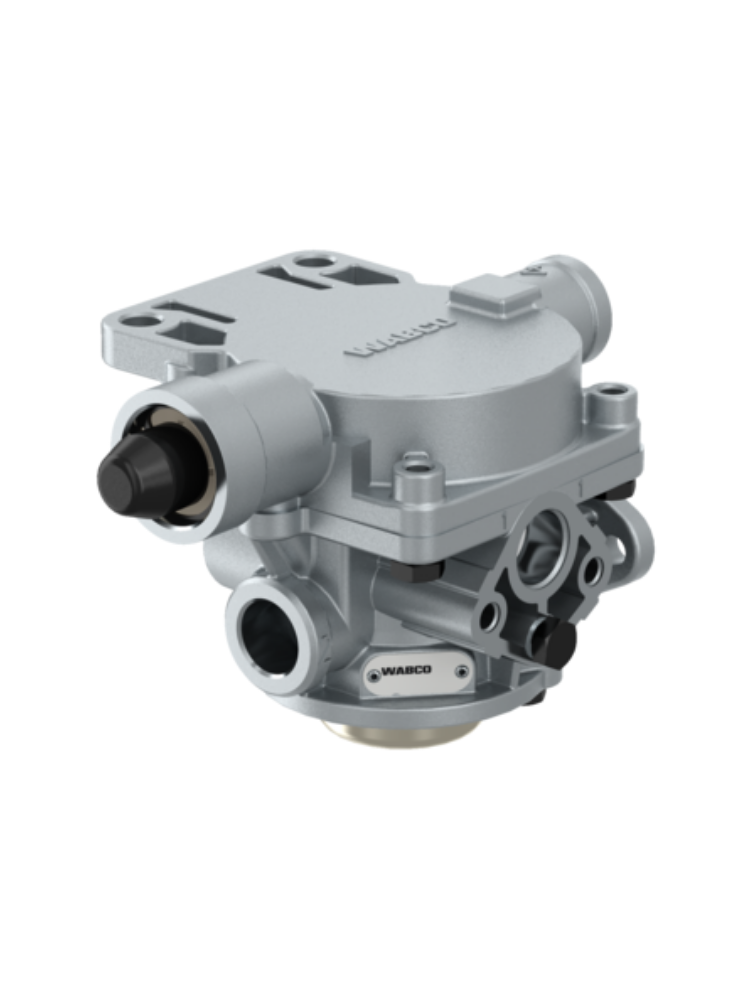

Relay Emergency Valve John Deere 2480005
Roll over image to zoom in
-
Brand : WABCO
-
Adjustable predominance: Adjustable: 0 to 1 bar
-
Distance between holes: 71 mm
-
Max. operating pressure: 10.0 bar
-
Mounting: 2x Ø 11.0 mm
-
Port thread 1: M22 x 1.5
-
Port thread 12: M22 x 1.5
-
Port thread 2: 2x M22 x 1.5
-
Port thread 3: Flap Exhaust
-
Port thread 4: M22 x 1.5
-
Range of adjustment: 1 bar
-
Temperature range: -40°C to +80°C
-
Size (mm x mm x mm): 184 x 126 x 121
-
Weight (kg): 1.462
